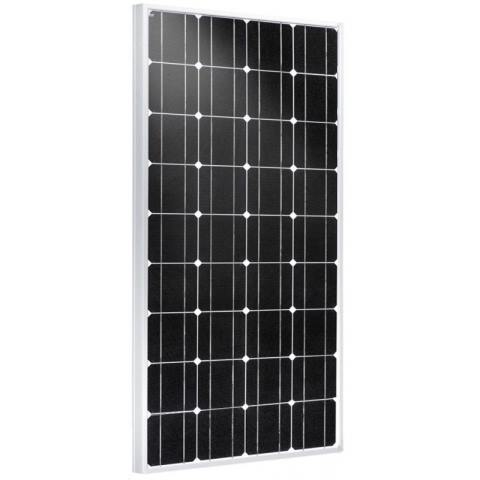

Monocrystalline solar panel 160 WATT high power silver frame

Reference: SUNM160

Condition: New product

Monocrystalline solar panel 160 Watt

Recommended for small projects, nautical and caravan

More details

By buying this product you can collect up to 19 loyalty points. Your cart will total 19 loyalty points that can be converted into a voucher of 0,95 €.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Send to a friend

Send to a friend

Monocrystalline solar panel 160 WATT high power silver frame

Monocrystalline solar panel 160 Watt

Recommended for small projects, nautical and caravan

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Data sheet

Height (inches)	1508 mm
Width	665 mm
thickness (mil)	35 mm
Weight (Oz)	13000 g
Type	Monocrystalline
Max Power (Pmax)	160 Wp +/- 5%
Short circuit current (Isc)	8,58 A
Open circuit voltage (Voc)	22,40 V
Max power point current (Imax)	8,85 A
Maximum power voltage (Vpmax)	19,20 V
Max system voltage	600 V
NOCT (800W/m2-20°C - AM 1,5)	47 +/- 1°C
Production country	Italy
Number of solar cells	36
Panel Front side	Tempered glass 4mm
Rear back side	Tedlar foil
Encapsulation	EVA
Frame	Anodized aluminum
Junction box	IP65-2 bypass diodes

More info

Monocrystalline solar panel 160 Watt

Our solar modules are made with high efficiency monocrystalline silicon cells.

Photovoltaic module is the glass-Tedlar result type of careful selection of the best materials on the market and fully advanced manufacturing technology MADE IN ITALY.

Solar cells are vacuum encapsulated between two sheets of EVA and protected with a highly transparent sheet of tempered glass on the front side while a white Tedlar foil on the back side. The whole is enclosed by a frame of anodized aluminum by 35mm, with slots on the back for convenient installation on suitable supporti.I modules are made with 4mm tempered glass with low iron content and textured surface, to ensure maximum performance even in mobile applications such as RV or marine in which the modules are often installed with tilt and azimuth not ideal.
