Sale! Pannello solare fotovoltaico 10W 12V View larger

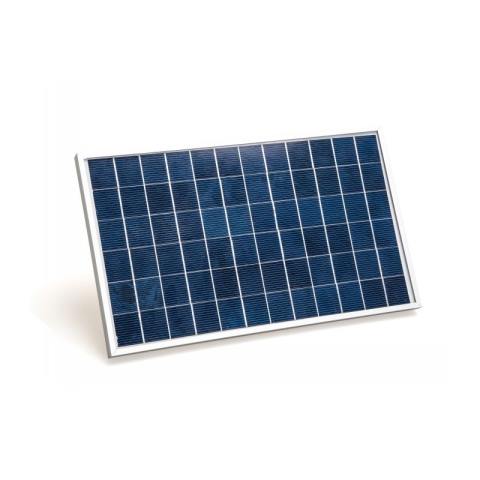

10W 12V photovoltaic solar panel

SUNP-SP-10W-12V

New product

10W 12V photovoltaic solar panel

More details

By buying this product you can collect up to 1 loyalty point. Your cart will total 1 loyalty point that can be converted into a voucher of 0,05 €.


More info

ELECTRICAL CHARACTERISTICS

Maximum Power (Pmax) 10 Wp
Short Circuit Current (Isc) 0.67 A
Open Circuit Voltage (Voc) 22.25V
Current MPP (Imax) 0.56A
Voltage MPP (Vmax) 18.00V
Insulation Voltage 1000Volt

PHYSICAL CHARACTERISTICS
Dimensions (mm) 350x 260 x 25
Weight
1.1 Kg

CONSTRUCTIVE CHARACTERISTICS
Cell Type Polycrystalline
Number of Cells 36
Front Side Tempered Glass
Rear Side Multilayer Tedlar
Encapsulation EVA
Frame Anodized Aluminum
MaximumPower (Pmax) 5Wp
Short CircuitCurrent (Isc) 0.34 A
Open CircuitVoltage (Voc) 22.25V
CurrentMPP (Imax) 0.28A
VoltageMPP (Vmax) 18V
Maximum SystemVoltage 1000 V


PHYSICAL CHARACTERISTICS

Dimensions (mm) 245x 193 x 18
Weight
0.81 Kg


CONSTRUCTIVE CHARACTERISTICS

Front Side (Front) 4 mm Tempered Glass
Back Side (Rear) Multilayer Tedlar
Encapsulation EVA
Frame Anodized Aluminum
Junction Box IP65
