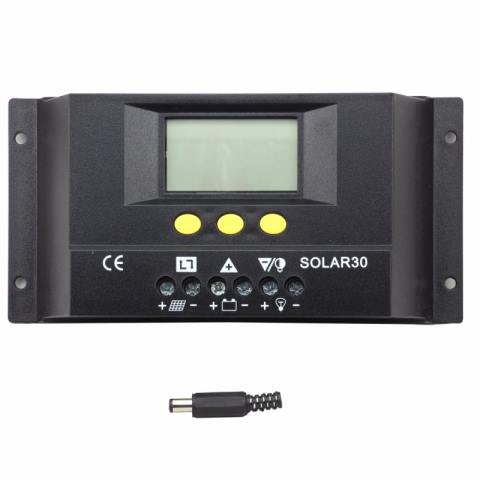

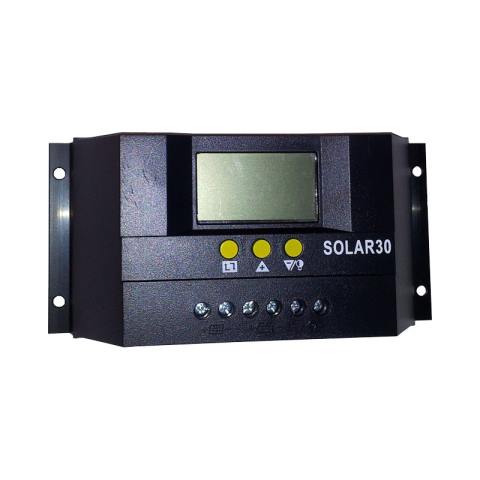

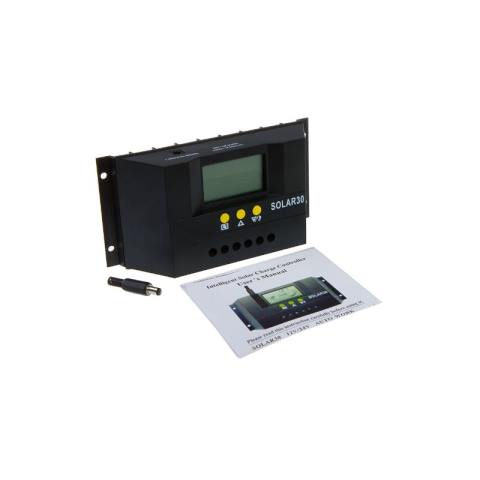

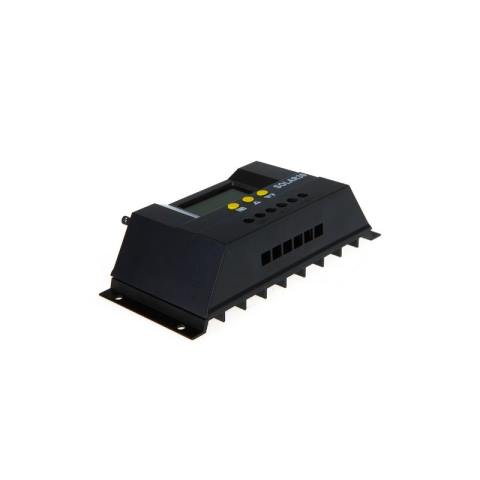

Solar Charge Controller SOLAR30 30A 12V/24V PWM with LCD display
SOLAR30
New product
Solar Charge Controller SOLAR30 30A 12V/24V PWM with LCD display
 |
Article recommended for DIY Solar panels |
By buying this product you can collect up to 3 loyalty points. Your cart will total 3 loyalty points that can be converted into a voucher of 0,15 €.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
- Send to a friend
Data sheet
| Height (inches) | 48 mm |
| Width | 188 mm |
| thickness (mil) | 48 mm |
| Weight (Oz) | 360 g |
| Float voltage | 13.8V / 27.6V |
| Low voltage disconnect (LVD) | 10.7V / 21.4V |
| Low voltages reconnect (LVR) | 12.5V / 25V |
| Temperature compensation | -4 mV / Cell / ℃ |
| Output Voltage | 12V 24V auto switch |
| Zero Load Loses | ≤30mA |
| Storage temperature | -30℃~ 70℃ |
| Operating temperature | -10℃ to 60℃ |
| Operating humidity | less than 90% (no condensation) |
| Mounting hole spacing | 60 mm 178 mm --5 |
| Rated Current | 30 A |
| Maximum Voltage of solar panel | less than 48 V |
| Loop voltage drop | less than 200 mV |
| Charging Mode | PMW Mode |
More info
Solar Charge Controller SOLAR30 30A 12V/24V PWM with LCD display
A solar charge controller is the controlling center of the PV battery in off-grid power system which makes use of solar cells array to protect your batteries from being over-charge and over-discharge, so the life span of it can be extended.
Features:
- Visual LCD graphic symbol
- Grade auto switch of system voltage

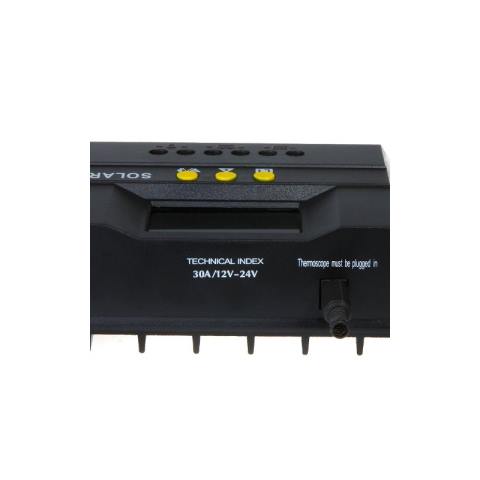

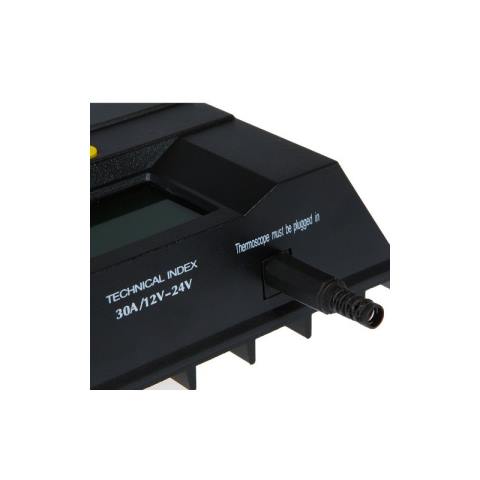

- Auto temperature compensation
- Settable working modes of loads
- Overloading & short-circuit protection
- Delayed auto restart after overloading protection
- Protection for battery back discharging
- Brief key operation
- Intelligent PWM Charging Mode
- Adjustable charging & discharging parameter
- Accumulative function of charging & discharging AH
- Battery reversed protection
- Protection for battery low voltage
All technical information are available on enclosed datasheet.
