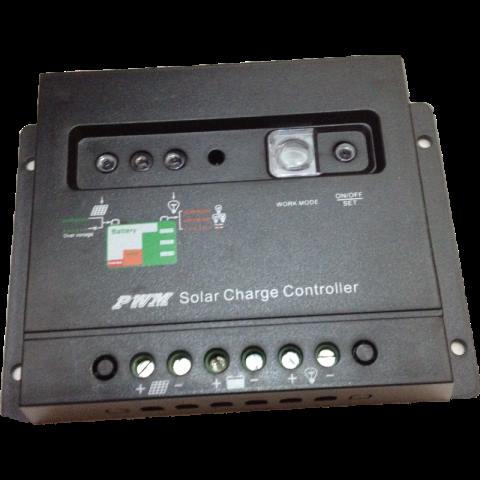

Solar Charge Controller EPIP30 30A 12V/24V

Reference: EPIP30

Condition: New product

Solar charger controller EPIP30 30A 12V/24V

Article recommended for small projects realization

More details

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 loyalty points that can be converted into a voucher of 0,10 €.

Share on Facebook!
Remove this product from my favorite's list.
Add this product to my list of favorites.
Send to a friend

Send to a friend

Solar Charge Controller EPIP30 30A 12V/24V

Solar charger controller EPIP30 30A 12V/24V

Article recommended for small projects realization

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Data sheet

Equalization voltage	14.8 V
Boost voltage	14.4 V
Float voltage	13.6 V
Low voltage disconnect (LVD)	11.10 V
Low voltages reconnect (LVR)	12.6 V
Temperature compensation	-30mv/ /℃ 12V
Self-consumption	6mA maximum
Terminals	for wire sizes to 6mm2
Temperature	-35℃ to +55℃
Note	X2 for 24V system
Output Voltage	12V 24V auto switch
Max load current	≤30A
Full charge cut	13.7 V
Low voltage cut	10.5 V
Temp compensation	-3mv/℃/cell
Zero Load Loses	≤20mA
Voltage Drop	less than 160mv

More info

Solar charger controller EPIP30 30A 12V/24V

A solar charge controller is the controlling center of the PV battery in off-grid power system which makes use of solar cells array to protect your batteries from being over-charge and over-discharge, so the life span of it can be extended.

All technical information are available on enclosed datasheet
