Plug and play photovoltaic soil. Color walkable solar tile 500x500mm
New product
Photovoltaic tile for floating floors, also in colored dimensions.
 |
Recommended article for making outdoor floating flooring. Dimensions and customizable shape. |
By buying this product you can collect up to 8 loyalty points. Your cart will total 8 loyalty points that can be converted into a voucher of 0,40 €.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
- Send to a friend
Data sheet
| Height (inches) | 500 mm |
| Width | 500 mm |
| thickness (mil) | 8 mm |
| Weight (Oz) | 5000 g |
| Power (W) | 42W ( 38W using colored solar cells version ) |
| Short circuit current (Isc) | 9,18 A |
| Open circuit voltage (Voc) | 5,8 V |
| Max power point current (Imax) | 8,57 A |
| Maximum power voltage (Vpmax) | 4,9 V |
| Number of solar cells | 9 |
| Other color | Black |
More info

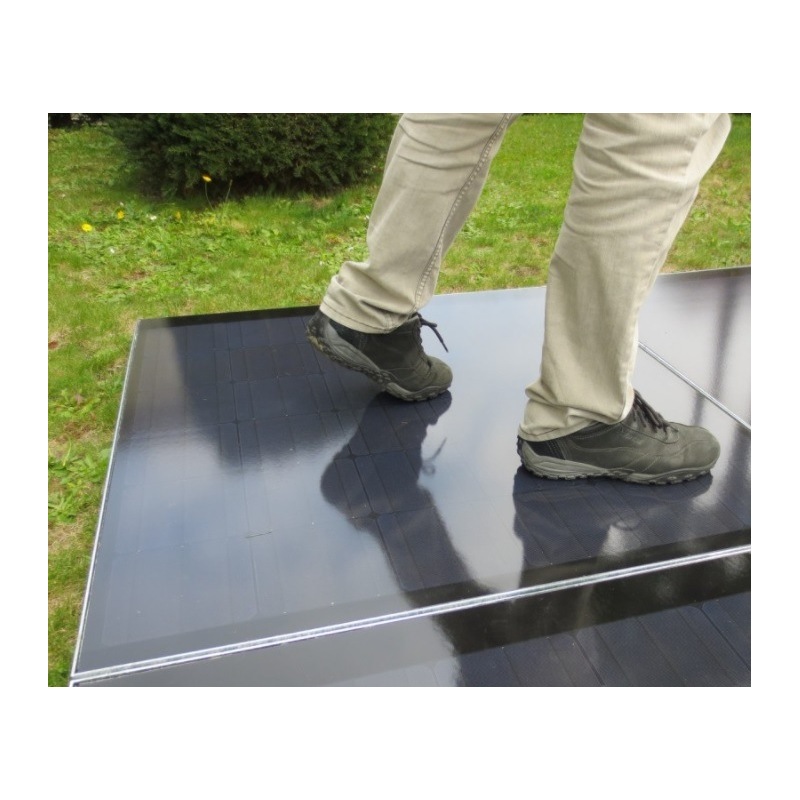

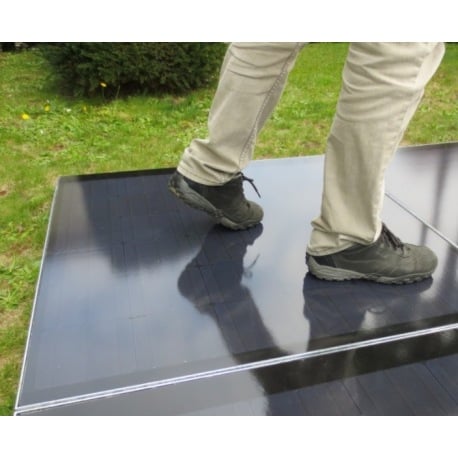

Plug and play solar floor. Walkable 500x500x8mm photovoltaic tile
Mr Watt gives the possibility to convert areas of land exposed to the sun and not used, into a renewable energy source. Most of these areas can be transformed into a source of energy using a floor that can produce energy and at the same time can be an object of innovative design.

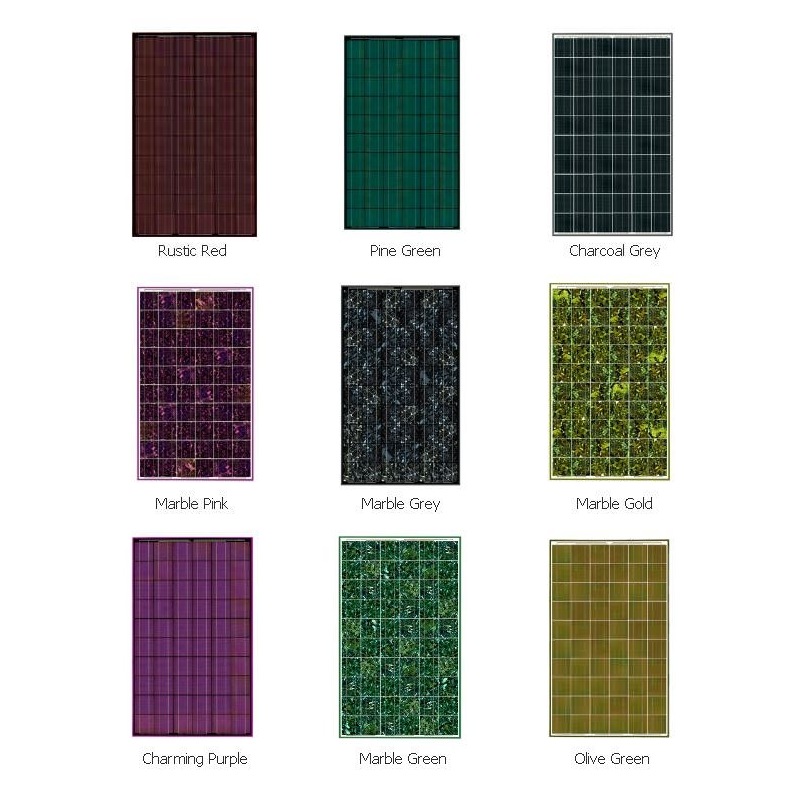

There is a wide variety of colors for photovoltaic floor processing, both monochromatic and with different chromatic structures.
Our solar floor is certainly a smart solution and a much more designer alternative than the lax rectangular hanging panel.
Here are some examples where solar coatings make sense:
- Terraces that are largely not used
- Single family homes and chalets
- Driveways and private passages
- Areas subject to landscape restrictions.
- Public places where you want to supply electricity where it is not easy or too expensive to reach with the traditional network.
- Places and entrances for companies and hotels, etc. where you want to show the guest or the customer that innovation and environmental protection are inalienable principles of the company.
If your imagination knows no bounds, contact us and together we will find a solution.

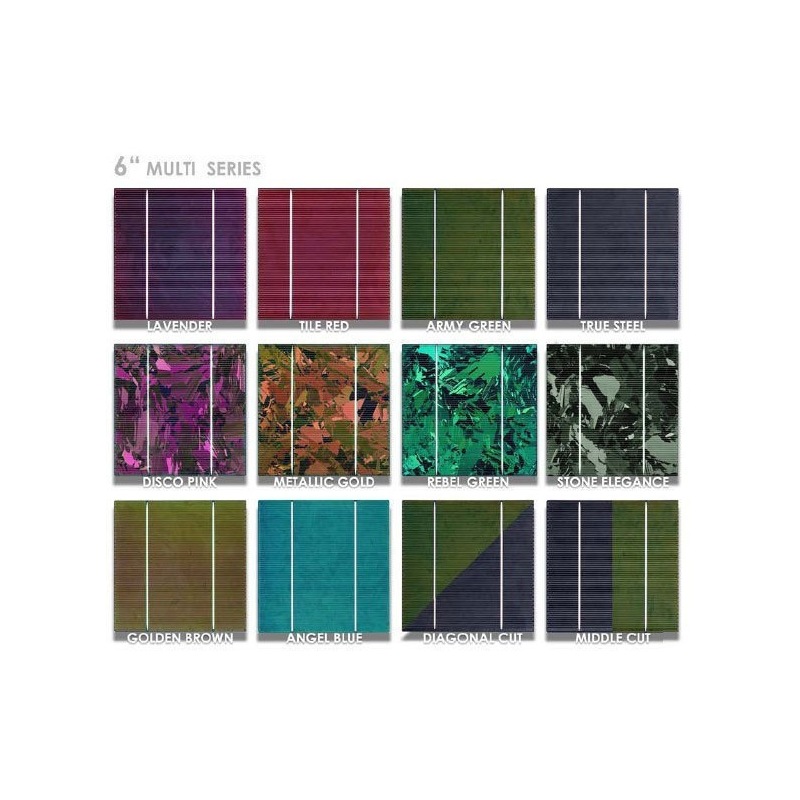

Below we list our solar floor coverings:
- Black Monocrystalline solar cell
- Spaced solar cells with transparent bottom

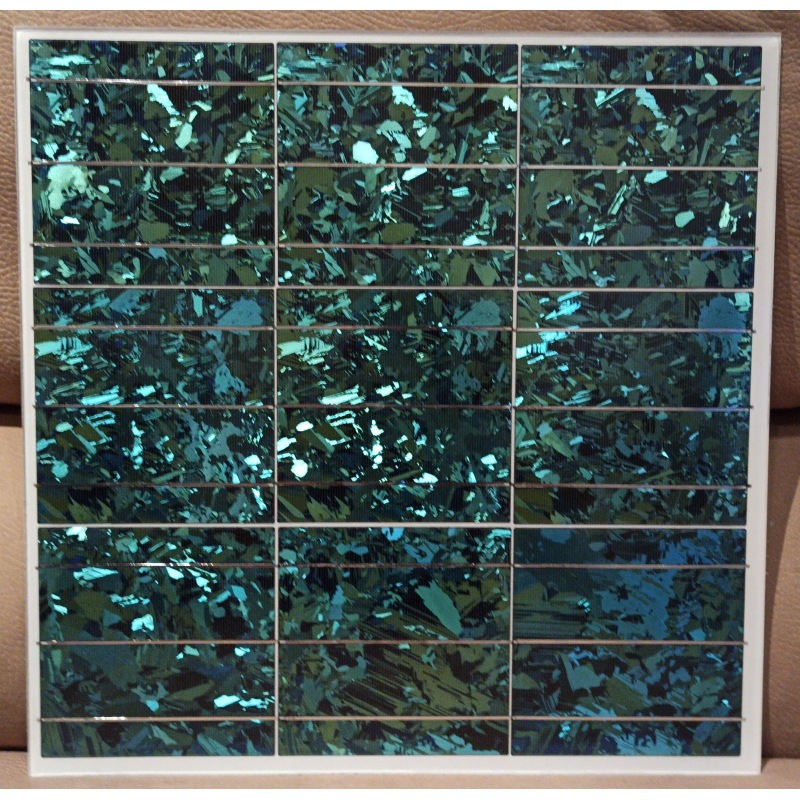

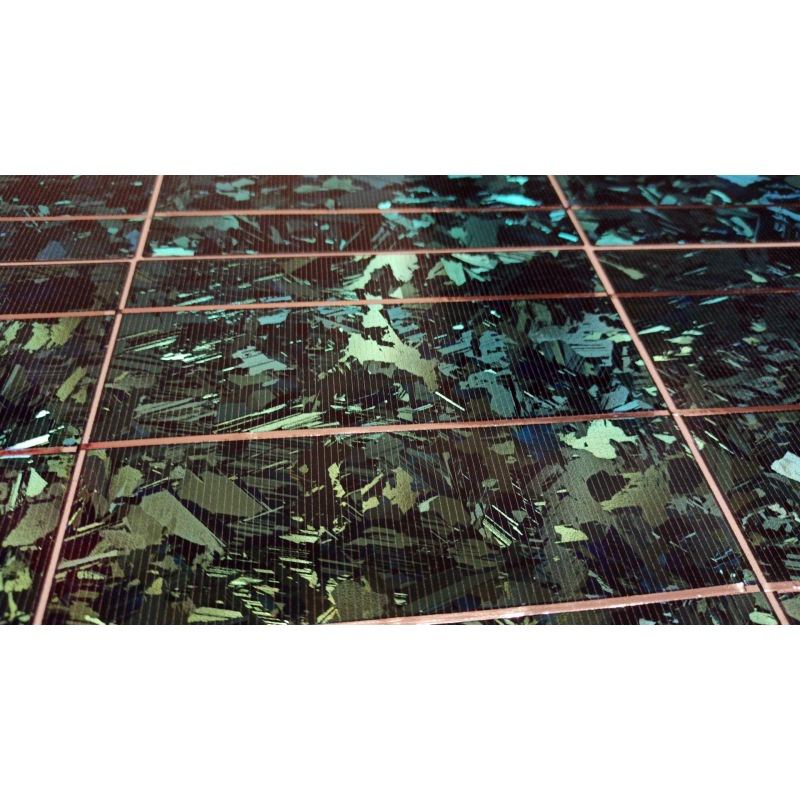

- Monochromatic colored polycrystalline solar cell (+ 25 €)
- Multichromatic colored polycrystalline solar cell (+ 45 €)
- Non-slip surface (+ 10 €)
Other features:
- The panels can be cleaned in the rain or simply with a jet of water
- The surface is scratch resistant under normal conditions
- Individual modules can be easily replaced if necessary
- Shading on a floor slab does not affect the energy production of the remaining floor covering
Dati tecnici:
- Power: 42 watts (38W versions with colored solar cells)
- VMPP: 4.9 volts
- IMPP: 8.57 amps
- UOC: 5.8 voltsISC: 9.18 amps
- Number of cells: 9
- Black colour
- Weight per base tile: 5kg
- Dimensions: 500x 500 x 8mm (double glass 4 + 4mm)
Instructions:
- The 8mm tiles are walkable but not suitable for the passage of cars. If you need a driveway tile, please contact us for details.
- In case of rain or humidity there is a risk of slipping.
- It is possible to integrate anti-slip protection, either directly by adding the anti-slip variant (we will use anti-slip glass in accordance with the law) or you can add transparent anti-slip stickers, but this could reduce the performance of the panel.
- It is recommended to lay the tiles on a slightly sloping ground with a slope of about 2% to drain rainwater.
- It is necessary to ensure that rainwater can flow.

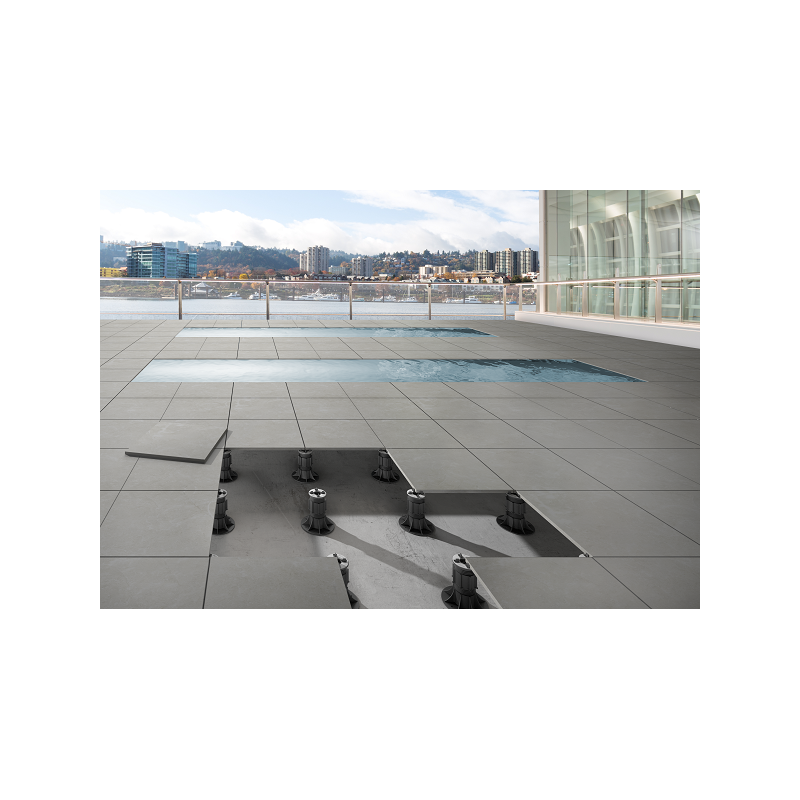

- We recommend installing the tiles on a concrete base and special feet for floating floors.
- It may be useful to add a rubber under the tile where the floating floor feet rest. Always leave 2-3mm of space between the tiles for water flow.
- Grid inverters are not included. They are offered on a project-specific basis.
- These tiles can be used to install plug and play photovoltaic systems
- You can install as many tiles as you want.
For any information do not hesitate to contact us!
