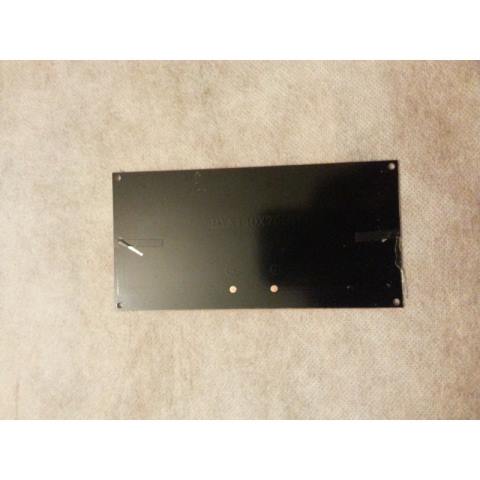

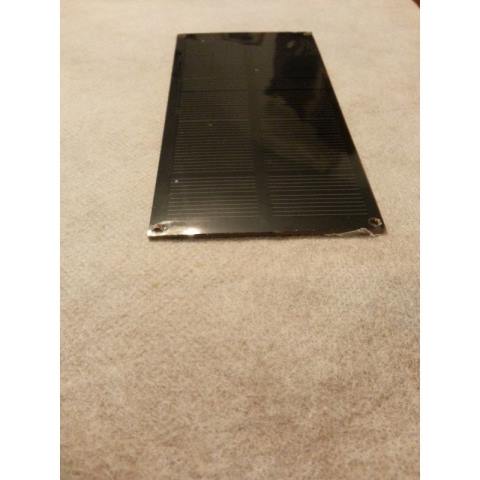

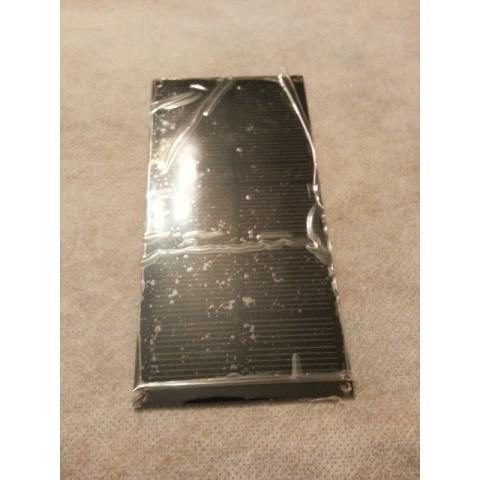

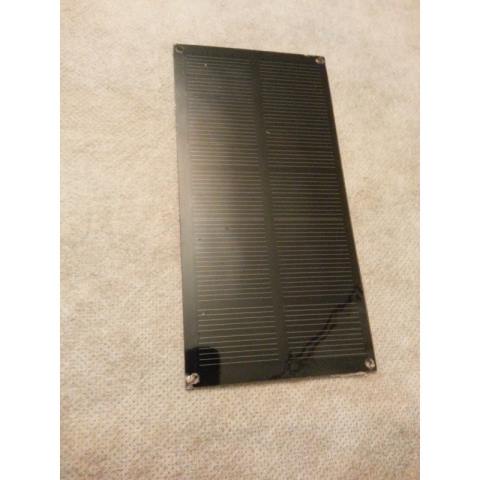

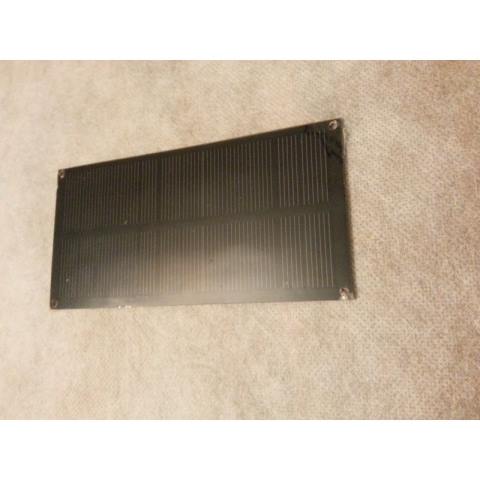

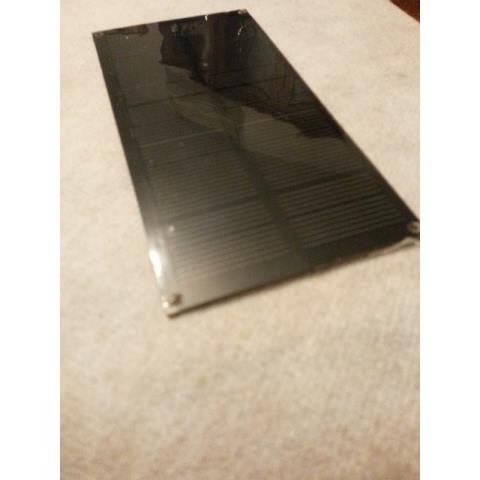

Mini PET solar panel monocrystalline 140X70 mm with holes at the corners
MSP1M140x70-6V-Hole-PET
New product
Mini PET solar panel monocrystalline 140X70 mm with holes at the corners
 |
Article recommended for small projects realization,electronic applications,charging small DC batteries,build your own self powered models/Toys/Solar display |
No reward points for this product.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
- Send to a friend
Data sheet
| Height (inches) | 140 mm |
| Width | 70 mm |
| thickness (mil) | 2,5 mm |
| Weight (Oz) | 20 g |
| Power (W) | 1,3 W |
| Voltage (V) | 6 V |
| Current (A) | 0,22 A |
| Property | Pet |
| Type | Monocrystalline |
More info
Mini PET solar panel monocrystalline 140X70 mm with holes at the corners
This table show the solar system configuration relationship between storage batteries and solar panels.
| DC Storage Battery | Solar Panel |
| 1.2V | 2V ~ 2.5V |
| 2.4V | 3.5V ~ 4V |
| 3.6V | 5V ~ 6V |
| 6V | 7.5V ~ 9V |
| 12V | 15V ~ 18V |
