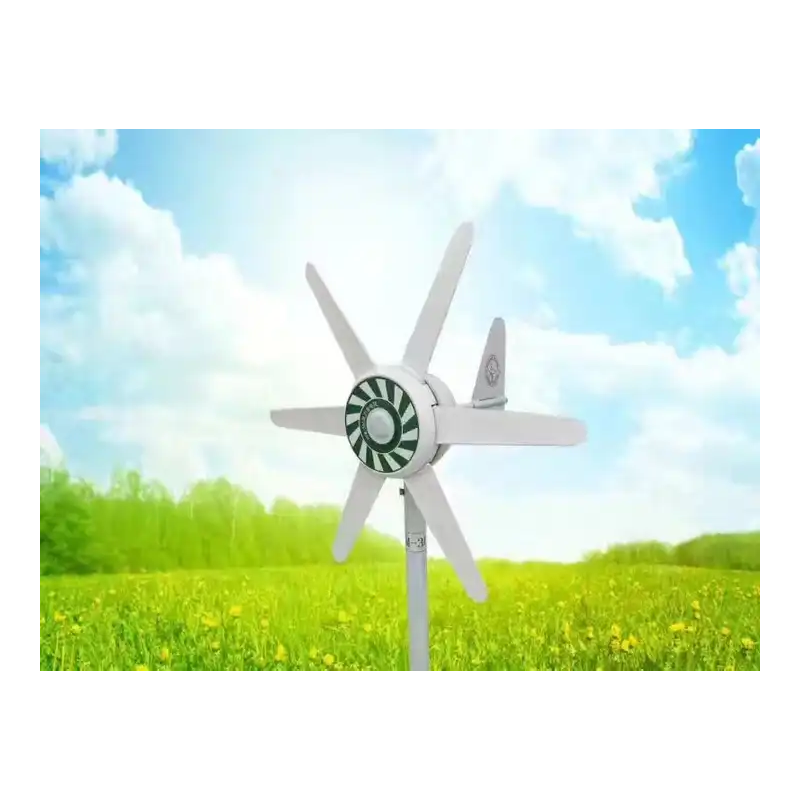

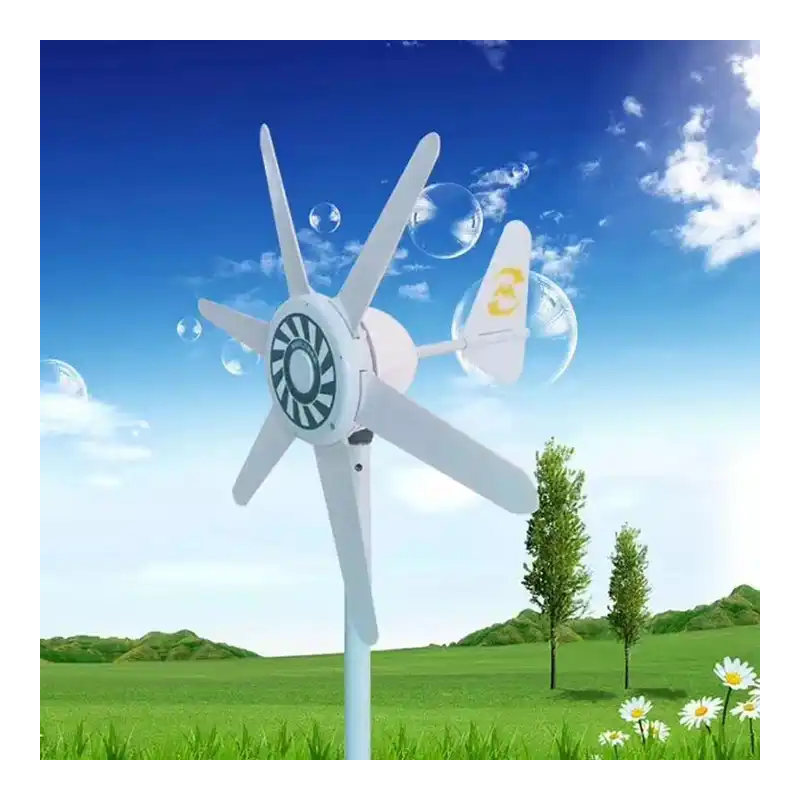

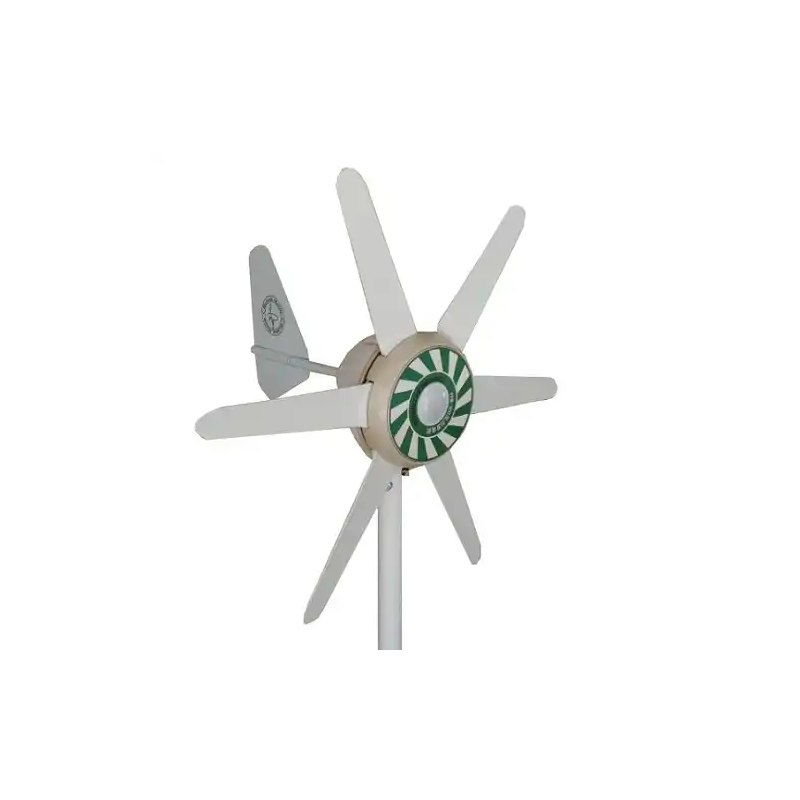

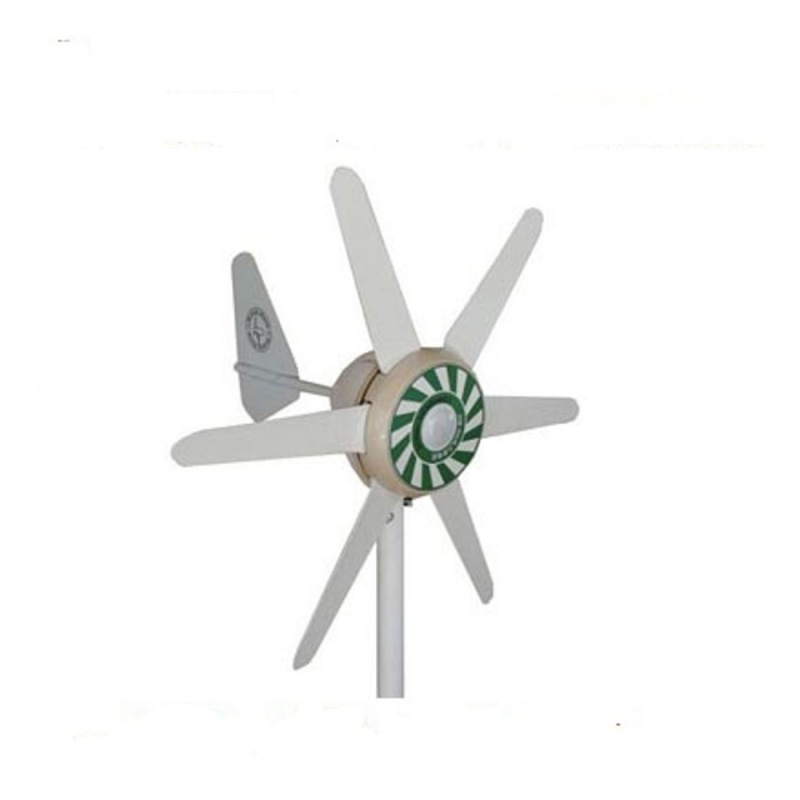

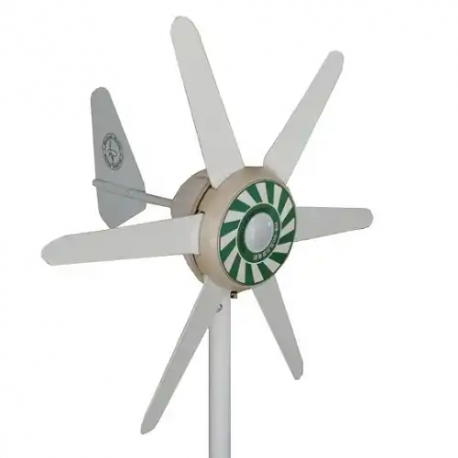

High-performance 90W M-300 micro wind turbine in 12V or 24V version

Just a few words about the wind turbine, before moving on to the description of the article.

The wind generator is an instrument capable of converting the kinetic energy of the wind into electrical energy.It is definitely the most important component of a wind power system, as it allows the exploitation of a renewable energy such as wind.

The basic principle of harnessing wind energy is the force of the wind, which sets in motion the blades anchored to a central pivot (called a hub) that allows them to make a rotary motion around their own axis; the structure that includes the hub and the blades - called a rotor - is connected to a transmission shaft that rotates inside the nacelle.

Thanks to an electric generator, the rotational mechanical energy from the drive shaft is transformed into electrical energy; the electricity produced is fed into the cables that run inside the tower and distribute it to the utility or power grid.

There are many types of wind generators but we can classify them into two main categories:

• Horizontal-axis generators: this first type of wind power generator ranges in power from a few KW up to 10 MW and more; its distinguishing feature is that it offers minimal resistance to wind advance. Horizontal axis generators usually consist of a steel tower at the apex of which is the wind turbine, consisting of an electric generator driven by a system of blades - called a rotor. Importantly, to achieve and maintain high performance, the axis of rotation is controlled to be in a position parallel to the wind direction.
• Vertical-axis generators: unlike the horizontal-axis type, the operation of vertical-axis wind generators is not affected by the direction of the wind; therefore, thanks to the structure consisting of a small number of moving parts.The principle of operation that differs from other wind power plants is precisely because of the position of the rotor, which, as the name implies, is placed in a vertical position.

OVERVIEW

The M300 micro wind generator that we offer for sale on our website in 12V or 24V versions is designed to start in low-speed winds, starting at 3 knots or 1.5m/s

It is ideal for making small island systems and, thanks to its built-in charge controller, can also be connected in parallel with the batteries of an island photovoltaic system.

The machine body is lightweight and allows excellent heat dissipation, has a specially designed to mgliore air flow, optimizing production and excellent value for money.

The M300-12 micro wind generator is widely used to make street lighting systems, radio links, small installations for video surveillance systems, forest fire monitoring, and much more.

Specially designed for small applications in remote locations, the M300 wind generator is also suitable on installations in boats, RVs, ideal for charging batteries, can also be combined with an existing photovoltaic system.

SCHEME

1. Front conver
2. Blades
3. Stator
4. Back Cover
5. Slip ring
6. Controller
7. Back nose cone
8. Tail vane

APPLICATIONS

• Houses, villas, isolated residences
• Boating ( boat, sailboat )
• Shed, bungalow, caravan, camper, mobile home
• Street lighting or mountain huts
• Telecommunication relays or industrial applications.

THE PACKAGE CONTAINS

• Micro wind generator
• Installation and operation manual

	Recommended article for the implementation of small island systems.
	MR WATT SRL is not responsible for installation or any action that may cause damage to vehicles, people or other property. Always be careful. Installation is simple, but if you are unsure, please seek experienced personnel.
