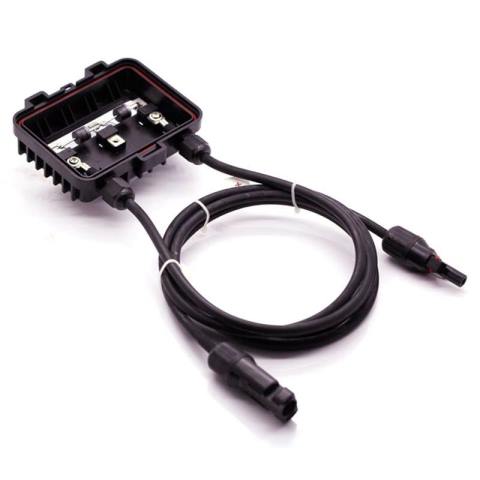

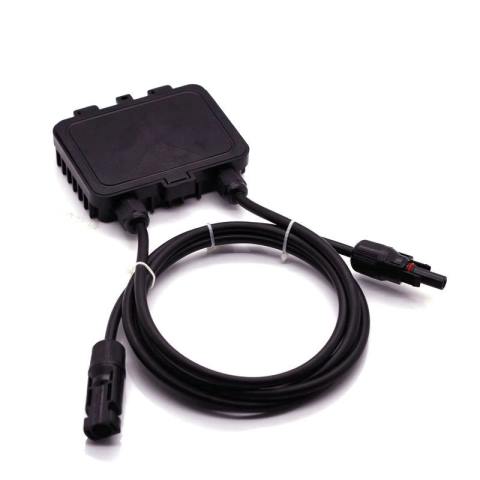

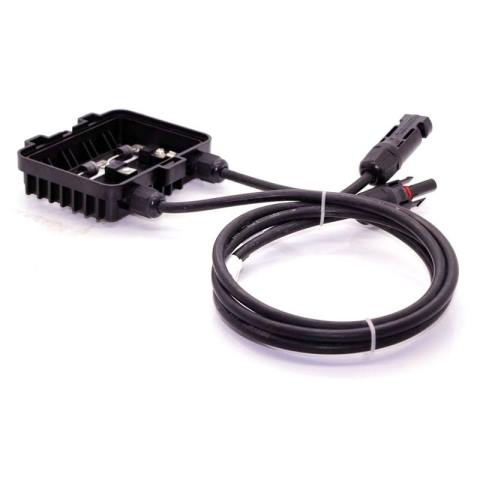

Junction Box for 150W solar panels model PV-LH0808-1
JB-WC8070-MC3-25
New product
Junction Box for 150W solar panels model PV-LH0808-1
 |
Article recommended for DIY solar panels |
By buying this product you can collect up to 1 loyalty point. Your cart will total 1 loyalty point that can be converted into a voucher of 0,05 €.
- Remove this product from my favorite's list.
- Add this product to my list of favorites.
- Send to a friend
Data sheet
| Height (inches) | 66,5 mm |
| Width | 49,5 mm |
| thickness (mil) | 20 mm |
| Weight (Oz) | 20 g |
| Voltage (V) | 1000 V |
| Current (A) | 6,5 A |
| Temperature | -40C to +85 C |
| Cable cross-section | 2,5 / 4 / 6 mm2 |
More info
Junction Box for 150W solar panels model PV-LH0808-1
Plastic junction box suitable for a wide range of photovoltaic applications.
Thanks to a quick locking system, the strings of photovoltaic panels can be easily connected with saving time and money.

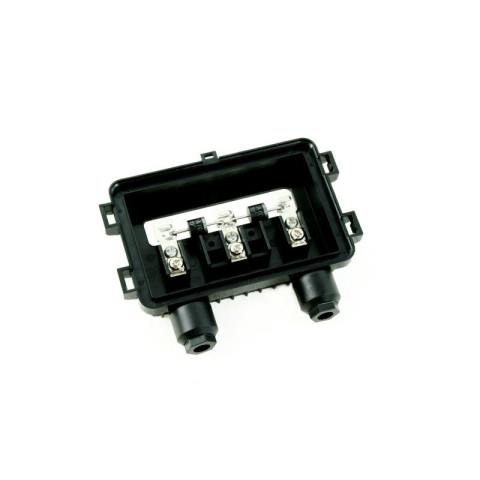

The junction box houses a blocking diode, is rugged and waterproof, UV-resistant.
It is easily connected to the back of the panel with an appropriate adhesive depending on the media you are using.
